MAGPHAN® RT: An integrated MR QA system for radiotherapy

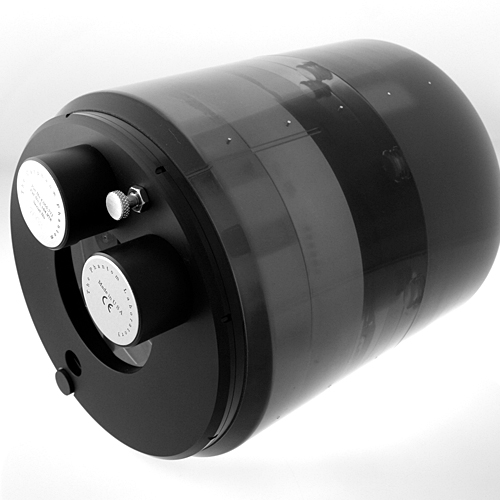

The Magphan® RT has been designed to meet the specific needs  MR QA in radiotherapy planning and guidance.  Distortion measurements for MRI in radiotherapy require a large field of view to encompass the range of torso sizes encountered in clinical practice. The Magphan RT’s modular design provides 2 different sizes. The large body configuration can measure distortion over a volume of 35 x 27 x 21cm and the super size configuration measures over a volume of 35 x 39 x 21 cm. The Magphan RT analysis system allows multiple image sets to be stitched together thus allowing a larger superior- inferior dimension to be achieved through table indexing.

With the large measurement volumes required for RT applications weight can become an issue. In order to make the phantom manageable for a single person without special handling devices we created a modular design with self contained sections that fit together precisely. For the large body configuration there are two sections (top and bottom) . The super size configuration includes a center module to increase volume in the the AP direction. Each module is light enough to be handle by a single person.

The modular design not only allows for easy handling of the phantom but also facilitates future system expansion with additional measurement modules.
